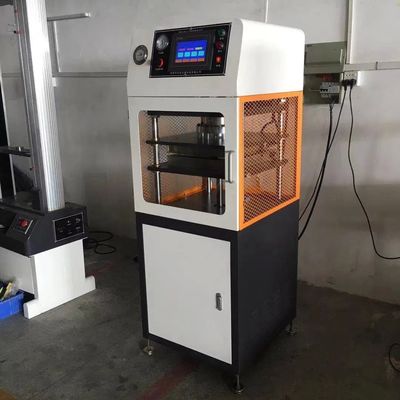

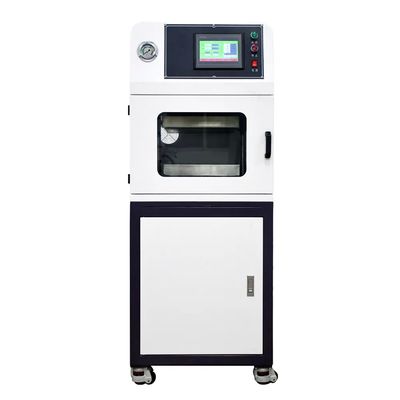

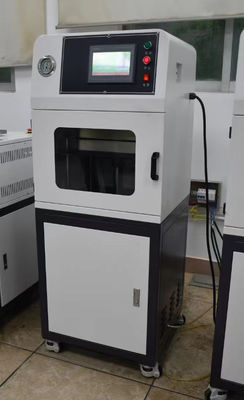

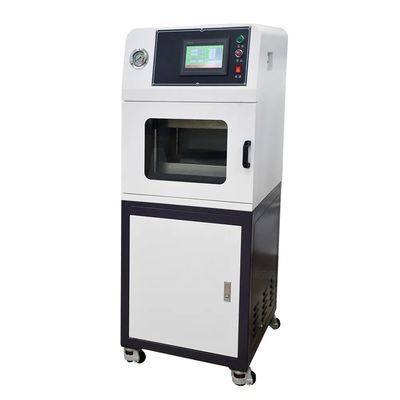

Digital Lab Pneumatic Tablet Press Machine with 10 Ton Capacity and 350*350mm Platen Area

Name: Digital Lab Pneumatic Tablet Press Machine with 10 Ton Capacity and 350*350mm Platen Area
Brand: Guangdong Guangce Instrument Technology Co., Ltd
Price: 1800 USD
Availability: InStock

MOQ:	1
Precio:	1800

Información detallada

Descripción de producto

Información detallada

Modelo No.:

GC-LX-D

Capacidad de la máquina:

10 toneladas

Presión del cilindro:

Dentro de 8 kg

Área del cristal de exposición:

350*350 mm

Planitud de las placas:

0.03 mm

Golpe máximo:

150 mm

Altura de apertura:

150 mm

Tiempo de calefacción:

0-30 minuto

Rango de temperatura:

Temperatura ambiente -300±1 ºC

Temperatura uniforme:

±1,5ºC

Potencia de calefacción eléctrica:

4.8kw

Potencia del motor:

1,5 kw

Voltaje:

220V

Peso:

80 kg

Capacidad de producción:

300 piezas/mes

Resaltar:

10 Ton Pneumatic Tablet Press Machine

350*350mm Lab Tablet Press Machine

Digital Tablet Press Machine

Descripción de producto

Digital Lab Pneumatic Tablet Press Machine for Rubber

Model: GC-LX-D

This pneumatic tablet press machine is designed for thermoforming, vulcanization sample preparation, and press-in product applications. Ideal for membrane switches, speaker films, and other concave-convex hot stamping molding processes, as well as thermal bonding and crimping of thin films.

Applications

Hot stamping of concave and convex surfaces such as membrane switch and horn film
Plastic granule pressure sheet test, thin film thermal bonding crimping
Production of large-area thermoformed products

Key Features

Four-column, three-plate steel structure with precision guide bushing for high accuracy
Adjustable pressure, stroke, speed, and pressure holding time
Separate temperature control for upper and lower heating plates (±1ºC accuracy)
Taiwan brand air pressure components and Japanese NOK seals for durability
Two-handed operation with emergency stop button for safety
Mobility features with casters and foot cup holders
Optional safety photoelectric protection device
Customizable for non-standard requirements

Technical Specifications

Parameter	Value
Machine capacity	10 ton
Cylinder pressure	Within 8KG
Platen area	350*350mm
Platen flatness	0.03mm
Maximum stroke	150 mm
Opening height	150 mm
Heating time	0-30 min
Temperature range	Room temperature -300±1ºC
Uniform temperature	±1.5ºC
Electric heating tube power	4.8KW
Motor Power	1.5KW
Using electric	220V
Weight (reference)	80KG

Company Profile

Guangdong Guangce Instrument Technology Co., Ltd is a professional OEM testing equipment manufacturer with 15 years of experience in R&D and production of polymer plastic testing instruments.

Packaging & Shipping

Frequently Asked Questions

Are you a factory or a trading company?

We are a professional OEM testing equipment manufacturer.

Why choose us?

We have 15 years of experience in R&D and production of polymer plastic testing instruments, and can provide production and processing customization.

How can we guarantee the quality?

We conduct pre-production samples before mass production and final inspection before shipment.

What's the delivery time?

Within 10 working days after deposit is received. Urgent orders can be accommodated.

What about the after-sale service?

12 months warranty with life-long paid repair or service available.

What services can we provide?

Accepted Delivery Terms: EXW/FOB/CIF. Payment Types: T/T, Pay Pal. Languages: English, Chinese.
